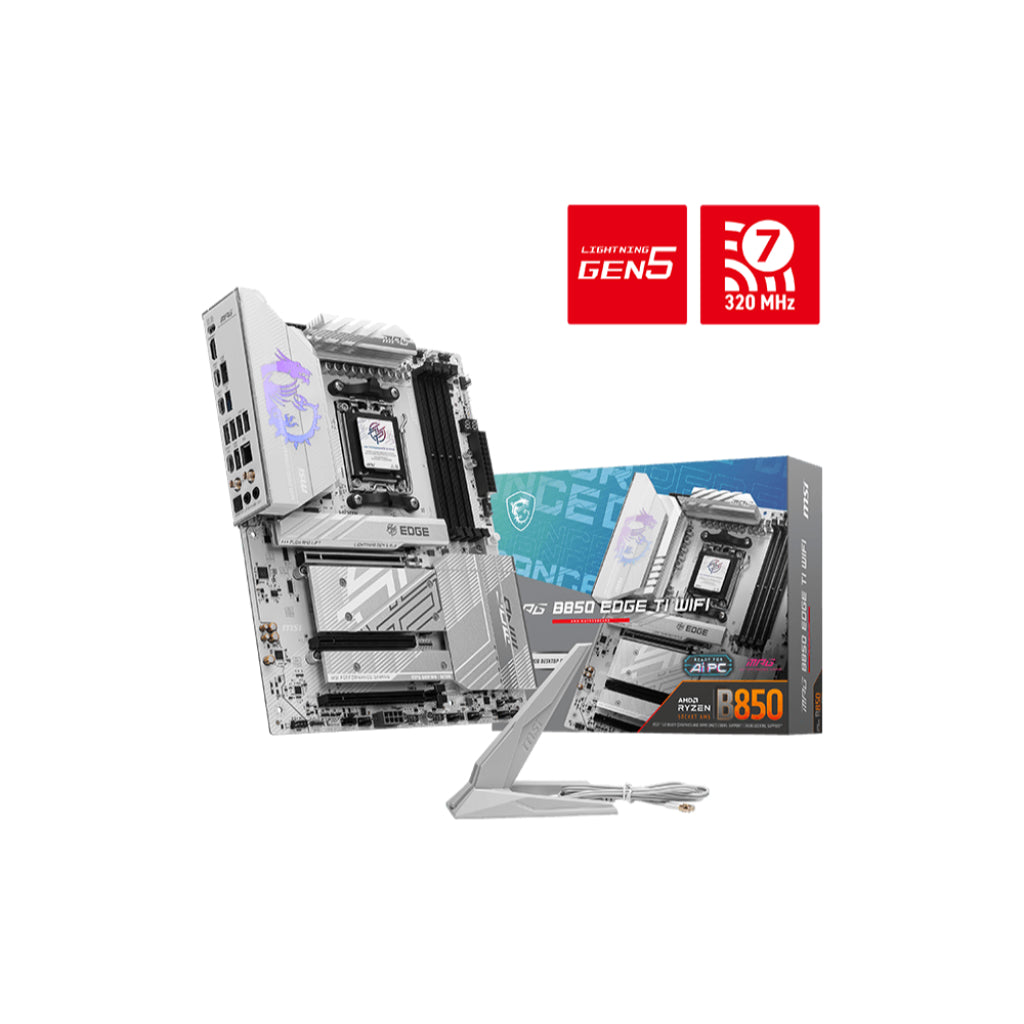

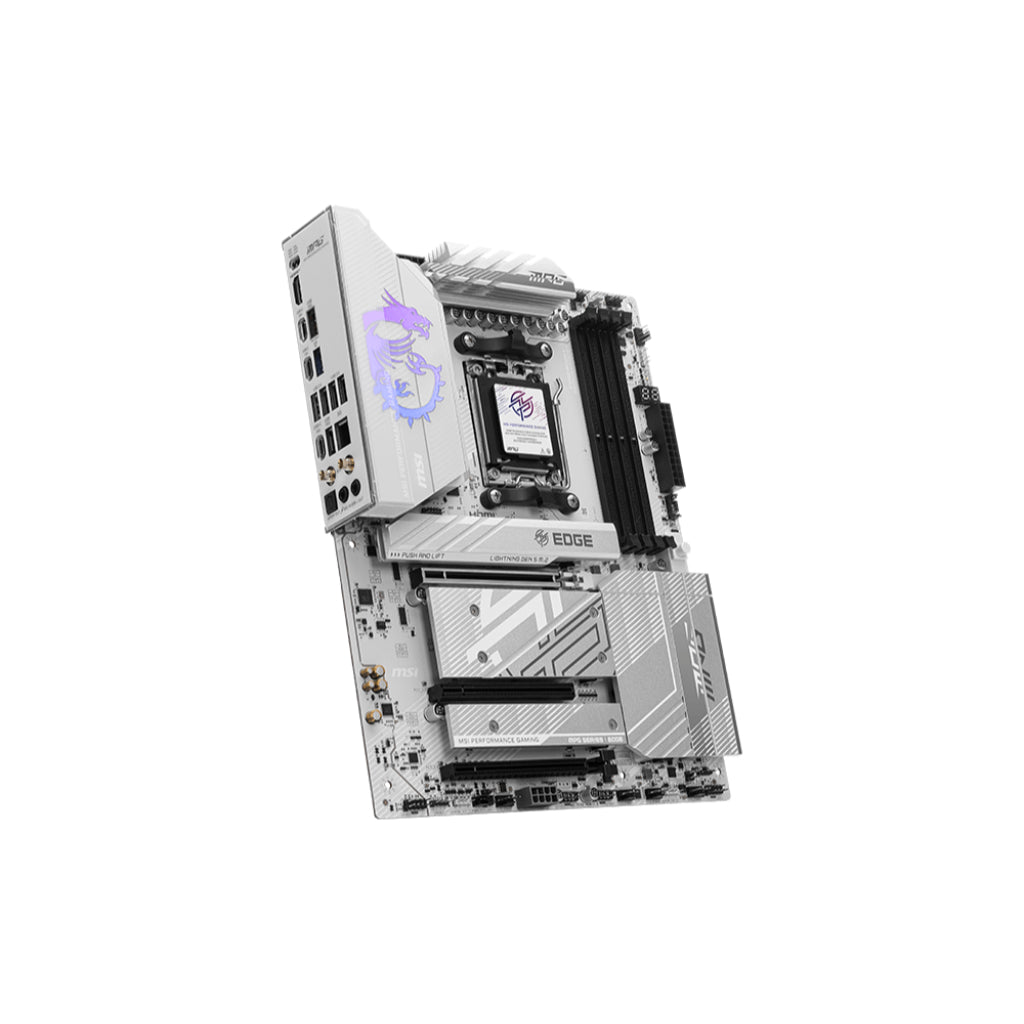

MSI MPG B850 EDGE TI WIFI AM5 ATX MOTHERBOARD(3YRS) - 4711377290616

Chipset AMD B850

CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency:

• 1DPC 1R Max speed up to 8400+ MT/s

• 1DPC 2R Max speed up to 6400+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPOTM

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

• The DIMM slots on this motherboard only have single-sided latch.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics1x HDMI™

Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot3x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot

• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)

• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

*PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot

Audio Realtek® ALC4080 Codec

7.1-Channel USB High-Performance Audio

Supports up to 32-Bit/384 kHz playback on front panel

Supports S/PDIF output

Storage4x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

M.2_1 slot

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M.2_2 slot

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors)

• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

RAID• Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices

*RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU

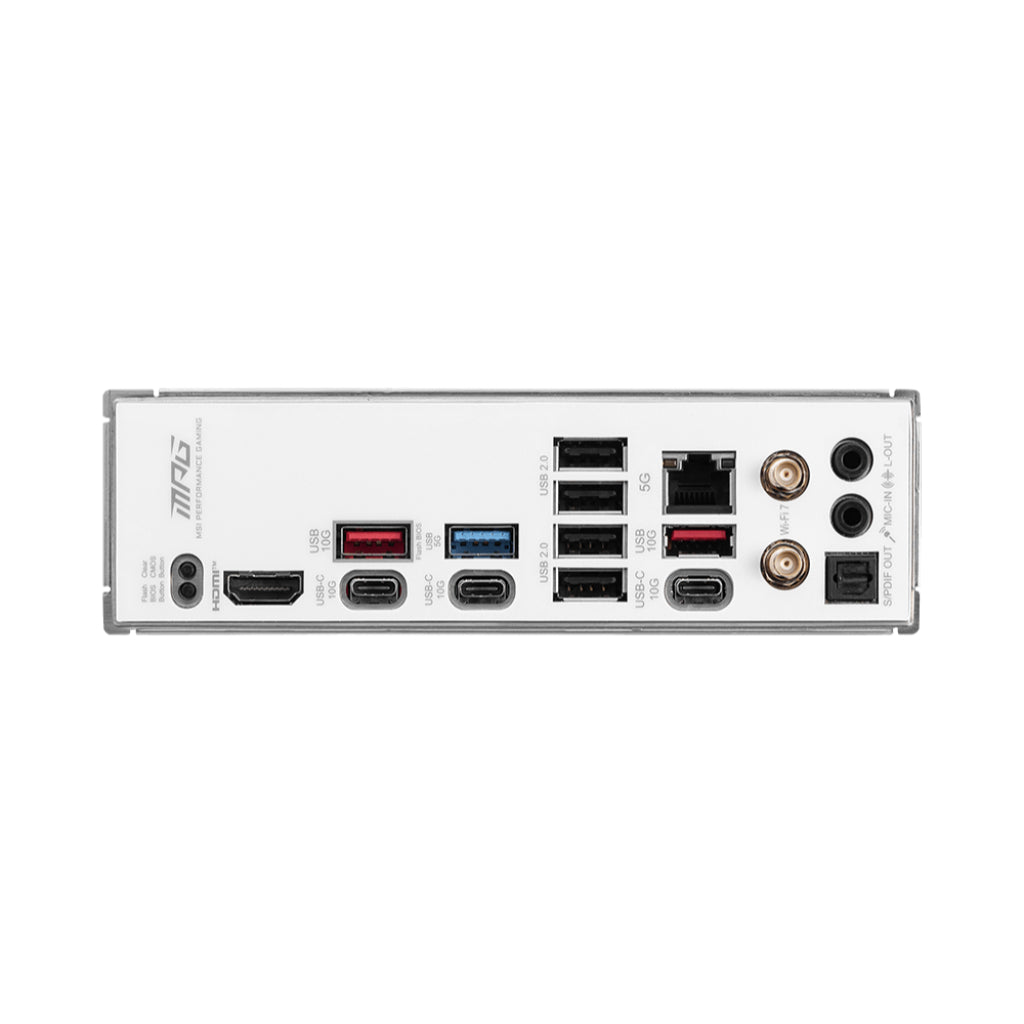

USB4x USB 2.0 (Rear)
