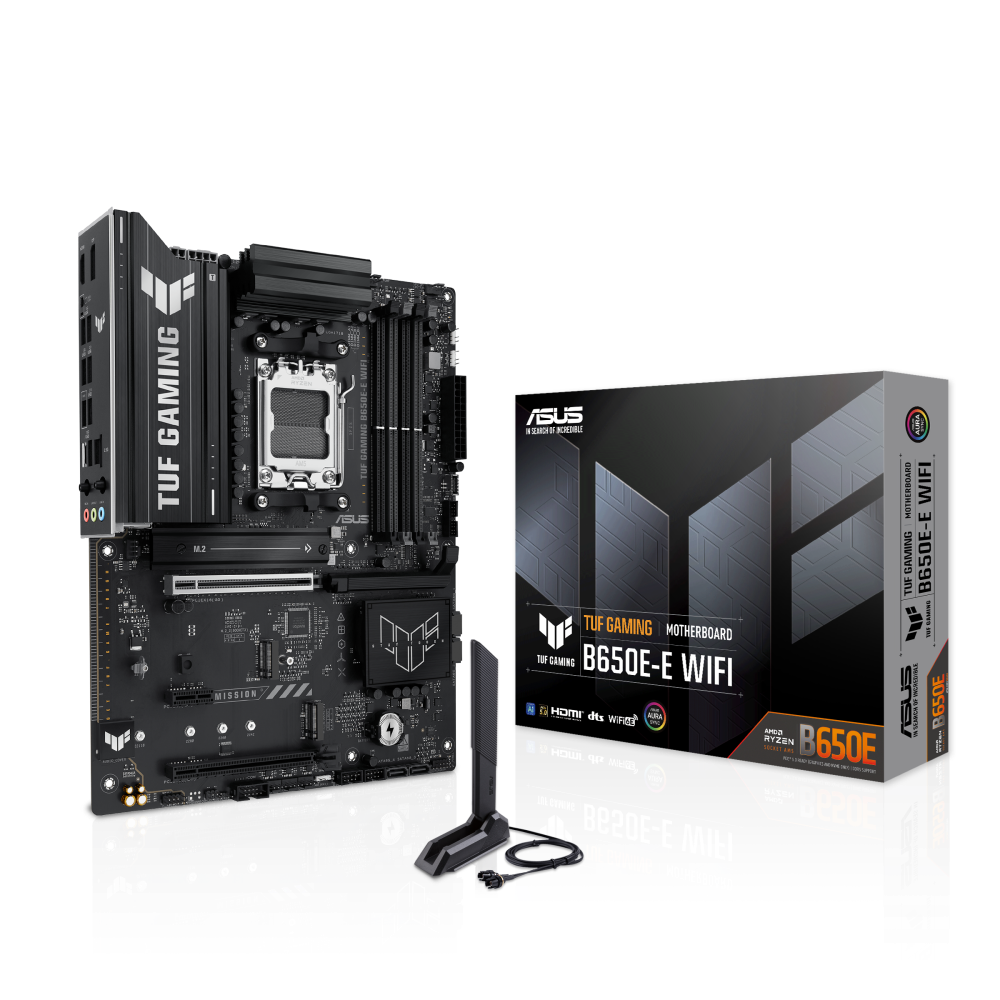

ASUS TUF GAMING B650E-E WIFI MOTHERBOARD

Model

TUF GAMING B650E-E WIFI

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD B650 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5

Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM

Graphics

1 x DisplayPort

1 x HDMI™ port

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD B650 Chipset

1 x PCIe 4.0 x16 slot (supports x1 mode)

1 x PCIe 4.0 x1 slot

Ethernet

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11ax)

Supports 2.4/5/6GHz frequency band

Bluetooth® v5.3

USB

Rear USB (Total 8 ports)

2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)

3 x USB 5Gbps ports (3 x Type-A)

3 x USB 2.0 ports (3 x Type-A)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x TUF Gaming sticker

1 x M.2 rubber package

2 x Screw packages for M.2 SSD

Documentation

1 x Quick start guide

Operating System

Windows 11, Windows 10 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch (30.5 cm x 24.4 cm)

* For Compatibly of the product, please visit the respective product web site

* Compatibility issues are not covered under warranty or return

* To be eligible for a return in case of a change of mind or product damage customers are required to video record the unboxing of the package.
