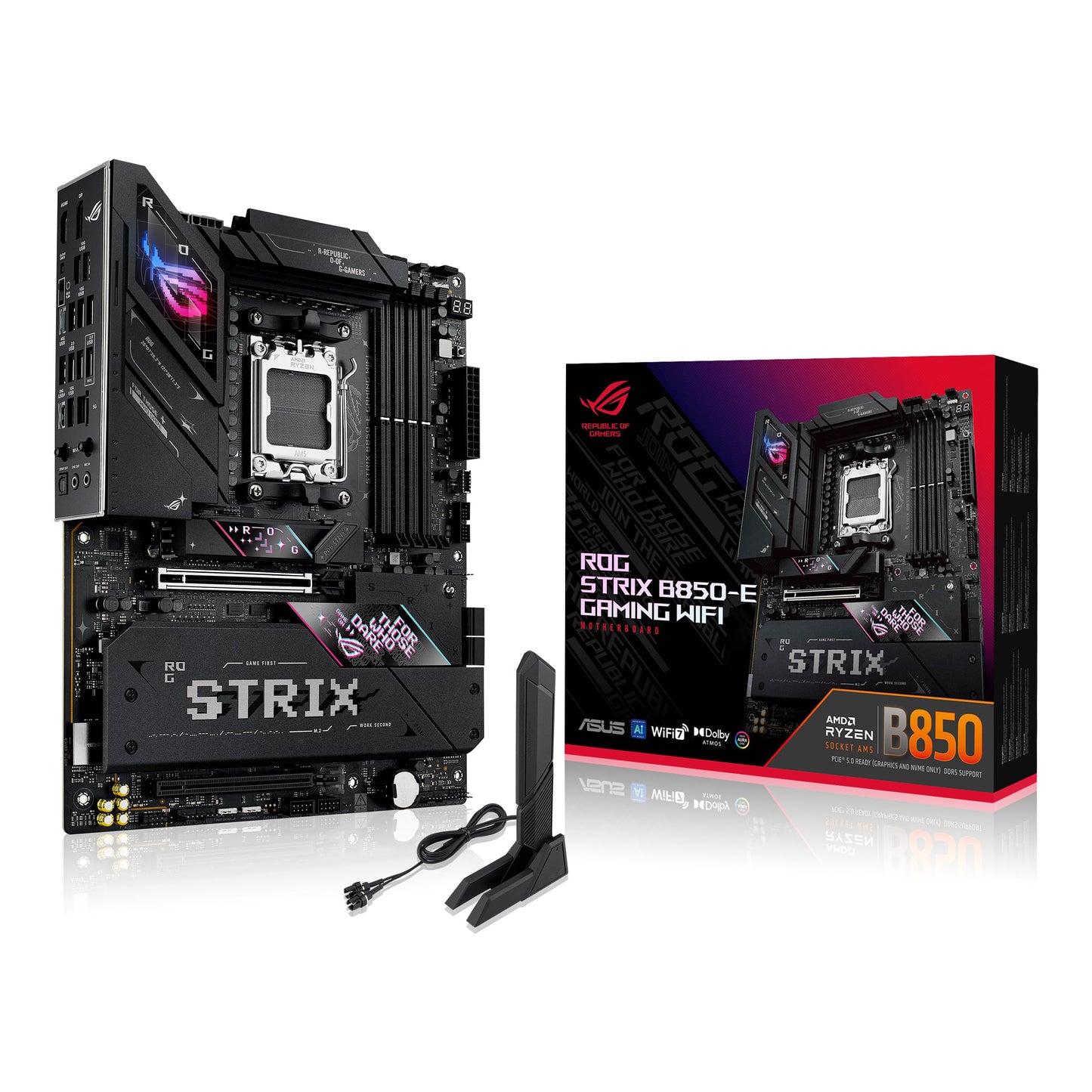

ASUS ROG STRIX B850-E GAMING WIFI AM5 ATX MOTHERBOARD(3YRS) - 4711387769317

Specification

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

ChipsetA

MD B850 Chipset

Memory

4 x DIMM slots, max. 192GB, DDR5

Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

Graphics

1 x DisplayPort

1 x HDMI™ port

1 x USB4® (40Gbps) port supports USB Type-C® display outputs

- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

*Supports max. 8K@30Hz as specified in DisplayPort 1.4

*Supports 4K@60Hz as specified in HDMI 2.1

*Supports max. 4K@60Hz as specified in DisplayPort 1.4a

*VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes)**

AMD Ryzen™ 8000 Series Desktop Processors

1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)***

AMD B850 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

*When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8.

* Specifications vary by CPU types.

*M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)*

M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)**

M.2_3 slot (Key M), type 2280 (Not supports)***

AMD B850 Chipset

M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***

M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8.

** M.2_2 and M.2_3 slot will be disabled while using the AMD Ryzen™ 8000 Series Desktop Processors.

*** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.

AMD RAIDXpert2 Technology

Ryzen™ 9000 Series Processors: RAID 0/1/5/10

Ryzen™ 8000 Series Processors: RAID 0/1

Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet

1 x Realtek 5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.

Bluetooth® v5.4

*Wi-Fi features may vary depending on the operating system

USB

Rear USB (Total 12 ports)

1 x USB4® (40Gbps) port(1 x USB Type-C®)*

1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)

6 x USB 10Gbps ports (6 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 10Gbps connector (1 x USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Back Panel I/O Ports

1 x USB4® (40Gbps)(1 x USB Type-C®)

1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)

6 x USB 10Gbps ports (6 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi module

1 x Realtek 5Gb Ethernet port

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Internal I/O Connector

sFan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

Storage Related

5 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 10Gbps connector (supports USB Type-C® )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 header(s)

1 x CPU Over voltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x Power button

1 x 10-1 pin Front System Panel header

1 x Thermal Sensor header

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Accessories

2 x SATA 6Gb/s cables

1 x Thermal pad for M.2 22110

1 x ASUS WiFi Q-Antenna

1 x Cable ties package

1 x M.2 Q-Slide package

1 x ROG key chain

1 x ROG Strix stickers

5 x M.2 rubbers

1 x Quick start guide

Operating System

Windows 11

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
